Description

A very economical sheeter/oven combination for small to medium corn tortilla/chip production. It can deliver consistent quality of tortillas or chips in a variety of sizes, weight and masa. It's also a very easy to operate and maintain.

Features

Oven frame is made of 5" commercial steel channel, welded and coated with corrosion resistant paint for extra long service life.

Electro-mechanical drive system includes variable pitch pulley, gear reducer, double strand roller chain and sprockets.

atmospheric mix air/gas combustion system includes main gas valve, solenoid valve, gas cock valve, atmospheric mixer, drilled pipe burner and pilot system.

1" packed mineral wool insulated doors on left-hand, right-hand and rear side of the oven.

Spring activated heat expansion compensator system for each baking belt.

High quality finished stainless steel covering panels and doors.

Adjustable height oven support legs.

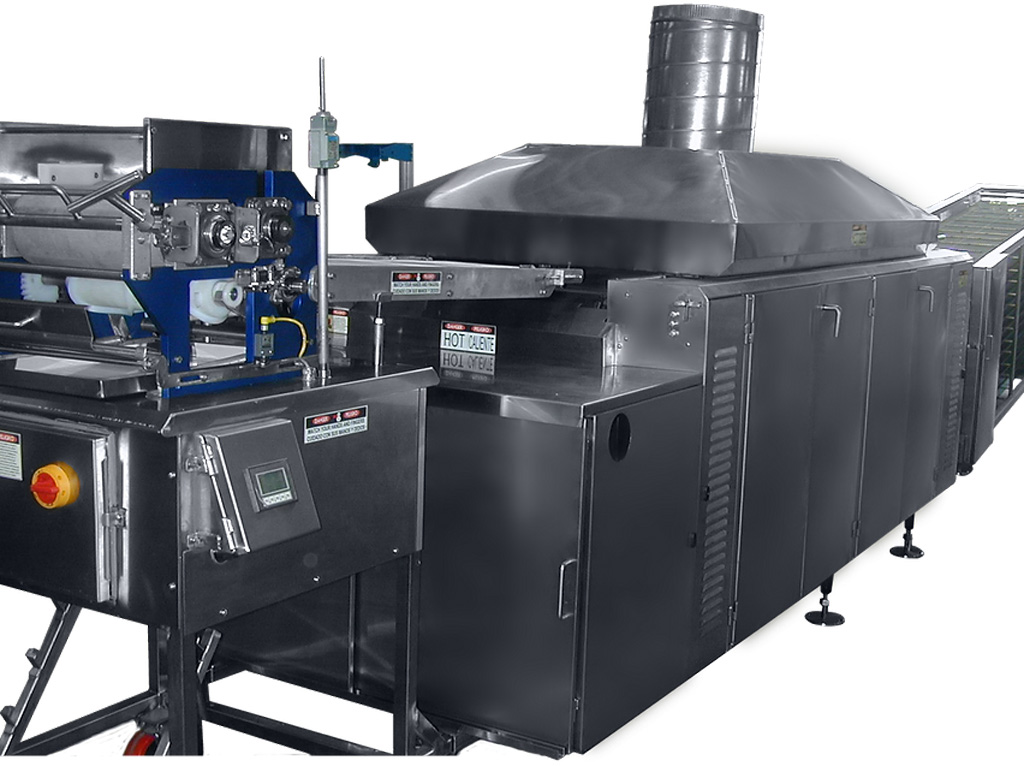

Std. 6 double corn sheeter, mounted on oven's counter top, to deliver 1000 dz/hr of tortilla or 600 lbs/hr of chip.

Optional Features

Infrared burners over the top baking belt.​

Double insulated and air vent cooled hood construction.

Deluxe 6 double corn sheeter.

Gravity heat expansion compansator.

Proportional mix combustion system with automatic temperature control.

Ribbons burners. Infrared temperature high/low controller sensor for fine tuning.

Electrical and control

2 HP, 3 Phase, TEFC motor.

Illuminated push/pull buttons.

NEMA 4 electrical box.
